Product Details:
|
| Bands: | 4G/3G | SIM Lock: | We Can Unlock/lock The SIM Card According To Customer Requirement |
|---|---|---|---|
| Type: | 4G USB Dongle | Color: | White/black/red/grey/yellow |
| Battery: | No | With Modem Function: | No |
| Application: | WIFI Hotspot | Product Name: | 3G/4G Router |
| 2.4g Wi-fi Transmission Rate: | 150 Mbps | Wifi Sharing: | 10 Device |
| Support Use On Computer: | Yes | ||
| High Light: | LTE 4g wireless usb dongle,Mobile 4g wireless usb dongle,Hotspot dongle pocket wifi |
||
USB 4G wifi dongle Mobile Wireless LTE USB modem SIM Card Slot pocket hotspot
We are factory in China , have been manufacturing and selling 4G wifi routers around the world for over 10 years. wholesale order and customization order are welcome. If you need buy more products, you can contact our service to raise purchase quotation for you .
All of our 4G LTE routers use ZTE 4G chipsets, instead of cheaper TaiWan chipsets , best chipset guarantee best performance for our devices .

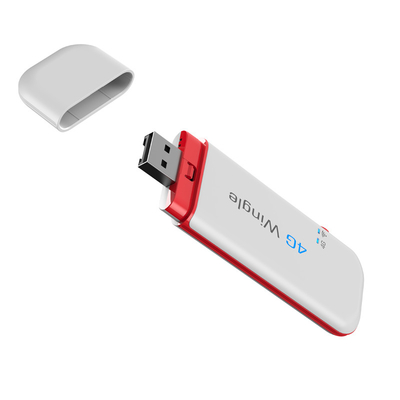

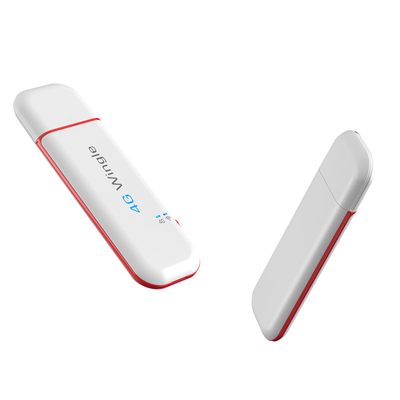

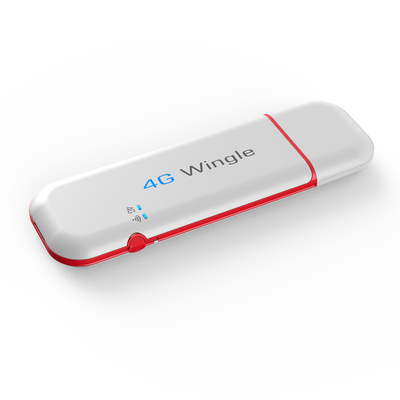

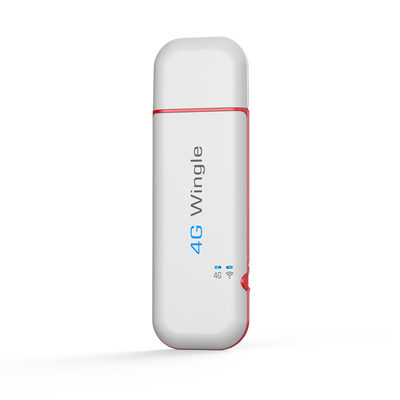

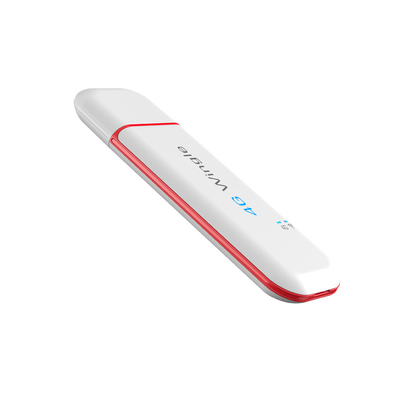

D926 is a 4G LTE USB wifi router, it takes power through USB port, work as wifi hotspot, also can be pluged into Windows computer USB port, work as USB modem. plug&play, doesn't need CD driver.
Pls make sure your computer's antivirus software or Firewalls allow the USB modem driver to install, otherwise it can't work as USB modem.
1. Plug and play. No need to do any setting.
2. Equiped with SIM Card slot, 4G network can be used to cover the entire home/office.
3. No need network cable and pay high broadband fee. Save a lot money.
4. 2.4Ghz WiFi wide coverage.
5. LTE CAT4, MAX 150Mbps (DL)/50Mbps(UL).
6. Worldwide bands, support all the SIM card, unlocked frequency band.
7. Support 10 users.
8. It is the best wifi solution for home, office, classroom.
| Form Factor | USB modem | Yes |
| USB Interface Type | Micro USB | Yes |
| User manual | Optional | |
| Quick guide | Optional | |
| Warranty cards | Optional | |
| TAC | Optional | |
| Baseband chipset supplier | SaneChip(attached to ZTE) | Yes |
| WiFi chipset supplier | Realtek RTL8189ES 1T1R | Yes |
| Wireless Chipset | ZX7520V3 | Yes |
| Wireless Processor | Cortex-A53 Dual | Yes |
| Wireless Processor speed | 624MHz/Cortex-A53 | Yes |
| USIM/SIM Slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card |
Yes |
| Memory(DDR/NAND) | 128MBytes/128MBytes | Yes |
| MICRO SDHC Slot | Micro SDHC,2G~32GByte Capacity,SD 2.0 Class 6 | Yes |
| USB Version | USB 2.0 HIGH SPEED | Yes |
| Interface | USB and Wifi | Yes |
| Maximum power consumption | <3W | Yes |
| LED indicator | 2 LED indicators WiFi indicator, Network indicator |
Yes |
| Chipset | ZX234220A1 | Yes |
| Main Antenna | Internal/External Interface | Yes |
| Receive Diversity Antenna | Internal | Yes |
| UMTS Band | Band 1/2/5/8 | Yes |
| LTE band | Band 1/2/3/5/7/8/28(20)/38/40/41 | Yes |
| MIMO for wireless | 2*2 MIMO | Yes |
| Max. transmitter power | LTE: +23dBm (Power Class 3) WCDMA/HSDPA 2100MHz:+24dBm (Power Class 3) |
Yes |
| WiFi band | 2400MHz-2483.5MHz | Yes |
| HSDPA/HSUPA/HSPA+/LTE | HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) HSUPA: UL 5.76Mb/s(Category 6) LTE FDD(Category 4): DL 150Mb/s UL 50Mb/s LTE TDD(Category 4): DL 110Mb/s UL 11Mb/s |
Yes |
| WiFi Max Station Number | 10 | Yes |
| Wi-Fi Standard | 802.11 b/g/n(1*1 ) | Yes |
| WiFi Security | WPA/WPA2 | Yes |
| OS | Windows XP SP3 later | Yes |
| Windows Vista | Yes | |
| Windows 7 | Yes | |
| Windows 8/8.1 | Yes | |
| Windows 10 | Yes | |
| MAC | Yes | |
| Linux | Yes | |
| Browser | IE | Yes |
| Firefox | Yes | |
| Safari | Yes | |
| Opera | Yes | |
| Chrome | Yes | |
| DHCP | Yes | |
| Port Forwarding | Yes | |
| IP(port) filter/MAC filter | Yes | |
| DMZ | Yes | |
| UPnP | Yes | |
| WPS | Yes | |
| RNDIS/ECM | Yes | |
| SMS | Yes | |
| SIM-OTA | Yes | |
| USSD | Yes | |
| Phonebook | Yes | |
| NETWORK LOCK | Optional | |
| Language | English by default, UI wording can be customized. | Yes |
| IPv4v6 | Yes | |
| FW upgrade | FOTA upgrade | Yes |
| Operating Temperature | -10 to 60° C | Yes |
| Storage Temperature | -40 to 70° C | Yes |
| Humidity | 5% to 95% | Yes |
| Engineering samples | Ready | Yes |
| Final samples | Ready | Yes |
