Product Details:
|
| Bands: | 4G/3G/2G | SIM Lock: | We Can Unlock/lock The SIM Card According To Customer Requirement |
|---|---|---|---|
| Type: | 4G Cpe Router | Color: | White/black/red/grey/yellow/ |
| USB Port: | USB2.0 | Application: | WIFI Hotspot |
| Product Name: | 3G/4G Router | 2.4g Wi-fi Transmission Rate: | 150 Mbps/50Mbps |
| External Antenna: | External Antenna Is Optional | RJ11 Voice Port: | RJ11 Voice Port Is Optional |
| High Light: | Unlocked 4G Home Router,4G Home Router SIM Card Slot,CPE home router with sim slot |
||

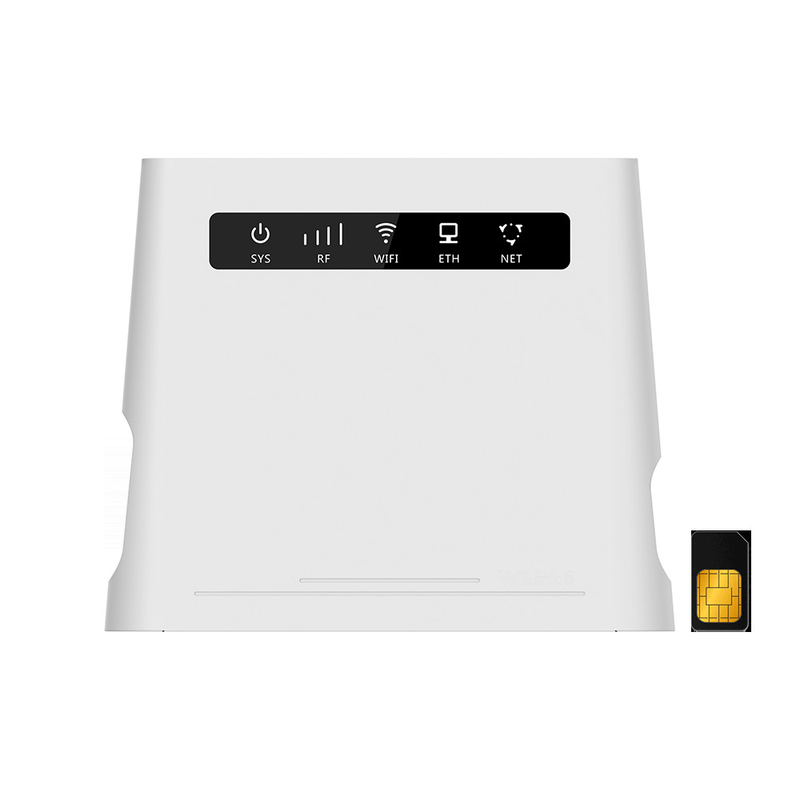

Unlocked 4G LTE Router with SIM Card Slot, Indoor CPE Mobile Hotspot, Wireless WiFi Router
1. Easy to Use, Plug and play. No need to do any setting. Insert Standard SIM card. The router will convert 4G LTE into a wifi hotspot. Devices can access the internet directly.
2. Equiped with SIM Card slot, 4G network can be used to cover the entire home/office.
3. Fast 4G LTE: Download speeds up to 150 Mbps. Upload speeds up to 50 Mbps and wireless transfer rates of 300 Mbps.
4. Worldwide bands, support all the SIM card, unlocked frequency band.
5. Its download speed is up to 150 Mbps, the upload speed is up to 50 Mbps and the wireless transmission speed is 300 Mbps. It has 2 high performance antennas, equipped with 1 * LAN and 1 * slot interface for SIM cards, the package is supplied with 12V 1A power supply. Operating temp: -10 ℃ ~ 40 ℃ for storage: -40 ℃ ~ 70 ℃ for working
6. Supports 32 Devices: Up to 300 square meters coverage and 32 Devices. Includes phone, tablet and computer
7. Support USB Interface Charging.
8. Support universal band.
9. Unclocked 4G wifi hotspot.
| Technical Standard | Compatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM 802.11 b/g/n |
| Frequency | LTE :1/2/3/5/7/8/28(20)/40 or 2/4/5/7/28(20)/66/40 UMTS: 1/2/5/8 GSM: 850/900/1800/1900MHz |
| WIFI | 2.4GHz, WIFI 2*2 MIMO,802.11 b/g/n |
| Maximum Data Throughput | FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL) |
| Transmit Power: | FDD-LTE 23±2.7dBm; TDD-LTE 23±2.7dBm; |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ZX297520V3 |
| RF Chipset | ZX234220A1 |
| WiFi Chipset | RTL 8192ES |
| Memory | Flash: 128MBytes RAM: 64MBytes |
| power consumption | <12W |
| Power Voltage | DC12V/1A |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
| LED | Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED, |
| USB | USB 2.0 TYPE-A |
| Antenna | Internal Antenna and external |
| Buttons | POWER,Reset,WPS |
| Slic | SI32185 |

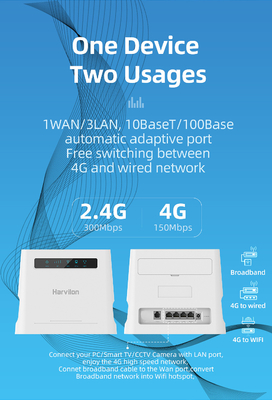

| Ethernet | 1*WAN+3*LAN, 10BaseT/100Base port |

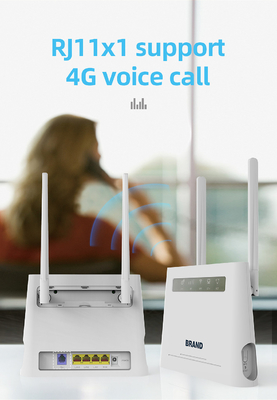

| RJ11 | RJ11*1 |
| Reset | Pinhole |
| ESD | ESD Protection circuit；Contact±8KV,Air±10KV |
| Battery | 3000mAh |
| SW Update | TR069 &FOTA Update |
| WIFI Mode | AP mode only, AP+STA is Optional |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; |
| SMS & Phone Book | Support |
| USSD | Support |
| USB Function | Support |
| Voice | VoLTE |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| IPv4v6 | Support IPv4v6 |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list |
| Data Statistics | Support |
| SIM Lock | Support |
| WAN Fallback to ETH | Automatically |
| WeUI | Support |
| Language | English by default, can be customized. |
| HTTP | Support |
| Depends on customization, cost related | |
| Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
