Product Details:
|
| Wifi: | AX1800 | Speed: | 300Mbps |
|---|---|---|---|
| Ports: | 4 LAN / WAN Ports & 1 Voice Port | Transmission Distance: | 100 M |
| WIFI: | WiFi 6 | Anternna: | Options |
| Users: | 32 | Protocol: | IEEE 802 .11 B / G / N / Ac |
| High Light: | 300Mbps 4g lte cpe router with sim card slot,CAT6 4g lte cpe router with sim card slot,CAT6 4g lte sim card cpe wifi router |
||

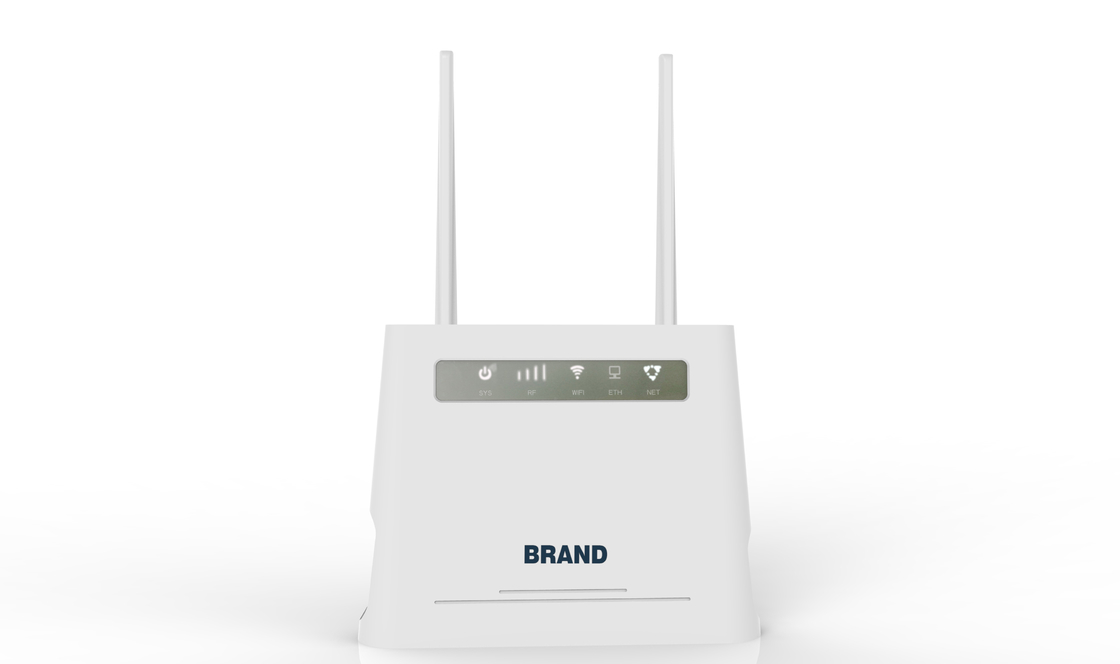

CAT6 4G router LTE 300Mbps CPE Router supports SIM card slot Wifi 6
4G LTE Cat6 . Maximum 300Mbps Uplink and 50Mbps Downlink .
Dual-Band WIFI , 2.4GHz+5GHz DBDC, Wireless Data rate up to 1200Mbps
WIFI 802.11 b / g / n / ac ; 4 Gigabyte RJ45 ports , 1WAN+3LAN or 4LAN ; 1 RJ11 port for VoLTE
FOTA and TR069 ; Automatic handover to wired network ; AX1800 Wifi 6
| Feature | Description |
| WiFi Chipset | MT2731 |
| Frequency | 4G B1/3/5/7/8/20/38/39/40/41 etc 3G B1/5/82G 850/900/1900/2100 |
| Agreement | 802 .11a / b / g / n / ac( 2 * 2 ) |
| Throughpu rate | Cat-6 ,FDD LTE :DL / UL 300 / 50Mbps |
| Band | 2 .4G ( 2.4 ~ 2 . 4835GHz ) 5 .0G( 5.15 ~ 5 . 825GHz ) |
| Memory | 4Gbits+4Gbits |
| Chanel range | 1.4/20MHz |
| Output power @25℃ | <23dBm |
| Transmit Power Dynamic Range | 65dB |
| Sencitivity(MRC) | -97dBm@10MHz QPSK |
| Sencitivity(MRC) | -94dBm@20MHz QPSK |
| Memory | 4Gbits+4Gbits |
| Standard | 3GPP R12 |
| Sending mode | 1Tx |
| Receibing mode | 2Rx |
| Band | 2.4G(2.4~2.4835GHz) 5.0G(5.15~5.825GHz) |
| Users | 32 |
| Throughpu rate | Cat-6 ,FDD LTE :DL / UL 300 / 50Mbps |
| Working time | more than 13 hours |
| Wifi Connection | 32 devices |
| Standard SIM | 2FF |
| Memory | 4Gbits+4Gbits |
| Antennas | 4G/3G/2G Main Antenna and 2 extra antennas |
| Size | 170mm * 155 mm * 27mm |
| Weight | 300 g |
Honored Partners
FAQ
1. Could we add French , Spainish , Japanese languages in the MiFi ?
[ Harvilon ] Yes , you can .There are about 20 languages you can choose .You can decide the languages according to your marketing .
2. We do not have designer , could you design our brand GB , ID , UI , labels for us ?
[ Harvilon ] Yes , Harvilon has more thenn 10 years experience in OEM / OEM ,we can help you on these designing until you are satified.
3. Could we as agent of your brand ?
[ Harvilon ] Of course , Harvilon welcome you to be as our agent . Harvilon will prepare stock for you after get your sales plan.
4. How long is the warranty ?
[ Harvilon ] One year . Usual use , no drop the water , we can help to repair for you .If need ,we send components to you AT FREE ,which not including PCBA , Battery and LCD .
5. How about 10K lead time ?
[ Harvilon ] About 25 -30 days .
6. I only want to buy 500pcs at first order , can I buy ?
[ Harvilon ] Yes , we can sale to you 500 pcs , but unit price is not as competitive as 5 K pcs .
