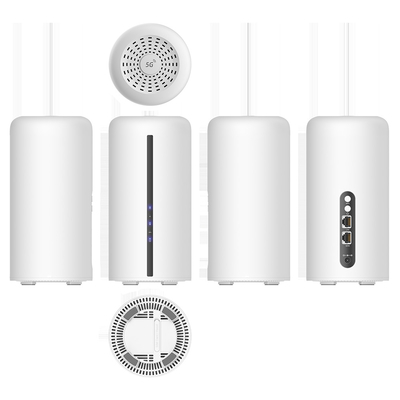

Product Details:
|
| Surface: | Round | Size: | 215 * 105mm |
|---|---|---|---|
| MIMO: | 5G MIMO 4 * 4 | Certification: | CE , ROHS , BIS |
| WAN LAN: | 2 Ports | Weight: | 700G |
| Wi-Fi: | 802.11 Ac / B / G / N | Color: | Black Or White |
| High Light: | Dual Core cpe 5g router,Modem cpe 5g router,Unlock 5g cpe |
||
5G / LTE Modem: Dual-core ARM Cortex A55 , 1.35GHz Unlock WIFI : Realtek RTL8198D Compatible with 4G / 3 G , 140 Countries
5G/LTE Modem : Unisoc IVY510, Dual-core ARM Cortex A55, up to 1.35GHz
WIFI : Realtek RTL8198D, Dual-core MIPS interAptiv @ 900MHz
Built-in high gain 5G Sub 6G antenna
Full compliance to 3GPP 5G NR+4G LTE TDD/FDD-LTE
RJ45 Gigabit Ethernet
802.11ac / b / g / n Wi-Fi support
Router , bridge , IPv4 & IPv6
FTP / HTTP Server and TR-069 client management support
SIM card authentication
OS Linux : 4.4
OEM , CKD Supported , payment : OA , LC , T / T .
Lead time : 30 - 45 Days .
| Feature | Description |
| Frequency | 5G-NR: N1/N41/N77/N78/N79 FDD-LTE: B1/B3/B5/B8(or B28A/B28B) TDD-LTE: B34/B38/B39/B40/B41 Can be customized according to the customer’s requirements |
| Size | 215mm * 105 mm |
| LED | 5 LEDs with 3 colors, Wi-Fi, 4G Signal, 5G Signal, WPS, Power |
| SIM Card | 1.8V / 3V Nano SIM Card |
| Wifi Connection | 32 devices |
| Chipset | 5G/LTE Modem : Unisoc IVY510, Dual-core ARM Cortex A55, up to 1.35GHz WIFI : Realtek RTL8198D, Dual-core MIPS interAptiv @ 900MHz |
| Memory | 5G/LTE Modem: RAM 4Gb LPDDR4X + ROM 2Gb Nand RTL8198D: RAM 2Gb DDR3 + ROM 1Gb Nand |
| OS | Linux 4.4 |
| Interface | DC , Power Key , WPS Key , Reset Hole , Nano SIM Solt RJ45 : 2 x Gigabit Port (1 LAN + 1WAN) |
| Power Supply | DC 12V/2A |
| Carrier Aggregation | DL : 3CA UL : 2CA |
| MIMO | 5G : DL MIMO 4 * 4 , UL MIMO 2 * 2 LTE : MIMO 2 * 2 WIFI : MIMO 2 * 2 ( 5GHz ) , MIMO 2 * 2 ( 2 . 4GHz ) |
| DL modulation | LTE : 64 - QAM 5G Sub6 : 256-QAM |
|
UL modulation |
LTE: 64-QAM |
| Peak data rate | 5G: 2Gbps DL/ 1Gbps UL, LTE: 300Mbps DL/ 150Mbps UL Notes: This is maximum theory speed, depend on the network support |
| Wi-Fi | 802.11a/b/g/n/ac 2.4GHz 2x2MIMO 11n, ~300Mbps 5GHz 2x2MIMO 11ac, ~867Mbps |
Honored Partners
FAQ
1. Could we add French , Spainish , Japanese languages in the MiFi ?
[ Harvilon ] Yes , you can .There are about 20 languages you can choose .You can decide the languages according to your marketing .
2. We do not have designer , could you design our brand GB , ID , UI , labels for us ?
[ Harvilon ] Yes , Harvilon has more thenn 10 years experience in OEM / OEM ,we can help you on these designing until you are satified.
3. Could we as agent of your brand ?
[ Harvilon ] Of course , Harvilon welcome you to be as our agent . Harvilon will prepare stock for you after get your sales plan.
4. How long is the warranty ?
[ Harvilon ] One year . Usual use , no drop the water , we can help to repair for you .If need ,we send components to you AT FREE ,which not including PCBA , Battery and LCD .
5. How about 10K lead time ?
[ Harvilon ] About 25 -30 days .
6. I only want to buy 500pcs at first order , can I buy ?
[ Harvilon ] Yes , we can sale to you 500 pcs , but unit price is not as competitive as 5 K pcs .
