Product Details:
|
| Bands: | 4G/3G/2G | SIM Lock: | We Can Unlock/lock The SIM Card According To Customer Requirement |
|---|---|---|---|
| Type: | 4G Cpe Router | Color: | White/black/red/grey/yellow/ |
| Battery: | 3000mAh Optional | USB Port: | Micro USB |
| With Modem Function: | No | Application: | WIFI Hotspot |
| Product Name: | 3G/4G Router | 2.4g Wi-fi Transmission Rate: | 150 Mbps/50Mbps |
| CPE: | Indoor CPE | ||
| Highlight: | 300Mbps 4G Lte Indoor Router,3000mA 4G Lte Indoor Router,150 Mbps 4g lte mobile hotspot router |
||

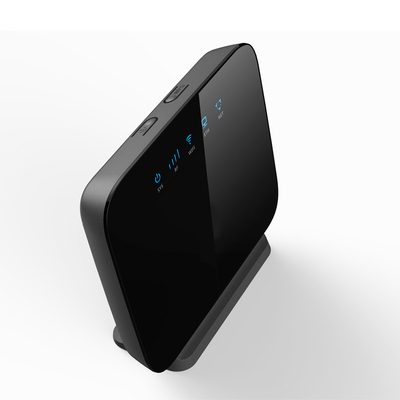

Unlocked 300Mbps Wifi Routers 4G lte cpe Mobile Router with LAN Port Support SIM card Portable Wireless Router wifi 4G
1. Plug and play. No need to do any setting.
2. Equiped with SIM Card slot, 4G network can be used to cover the entire home/office.
3. No need network cable and pay high broadband fee. Save a lot money.
4. 2.4Ghz WiFi wide coverage.
5. LTE CAT4, MAX 150Mbps (DL)/50Mbps(UL).
6. Worldwide bands, support all the SIM card, unlocked frequency band.

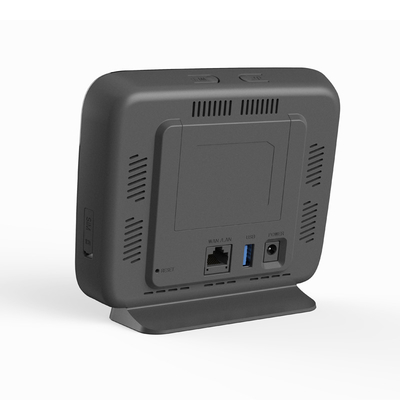

7. Its download speed is up to 150 Mbps, the upload speed is up to 50 Mbps and the wireless transmission speed is 300 Mbps. It has 2 high performance antennas, equipped with 1 * LAN and 1 * slot interface for SIM cards, the package is supplied with 12V 1A power supply. Operating temp: -10 ℃ ~ 40 ℃ for storage: -40 ℃ ~ 70 ℃ for working
8. It is the best wifi solution for home, office, classroom.
9. Support USB Interface Charging.
10. Support universal band.
11. Unclocked 4G wifi hotspot.
| Technical Standard | Compatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM 802.11 b/g/n |
| Frequency | LTE :1/2/3/5/7/8/28(20)/40 or 2/4/5/7/28(20)/66/40 UMTS: 1/2/5/8 GSM: 850/900/1800/1900MHz |
| WIFI | 2.4GHz, WIFI 2*2 MIMO,802.11 b/g/n |
| Maximum Data Throughput | FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL) |
| Transmit Power: | FDD-LTE 23±2.7dBm; TDD-LTE 23±2.7dBm; |
| Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO |
| BB Chipset | ZX297520V3 |
| RF Chipset | ZX234220A1 |
| WiFi Chipset | RTL 8192ES |
| Memory | Flash: 128MBytes RAM: 64MBytes |
| power consumption | <12W |
| Power Voltage | DC12V/1A |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |

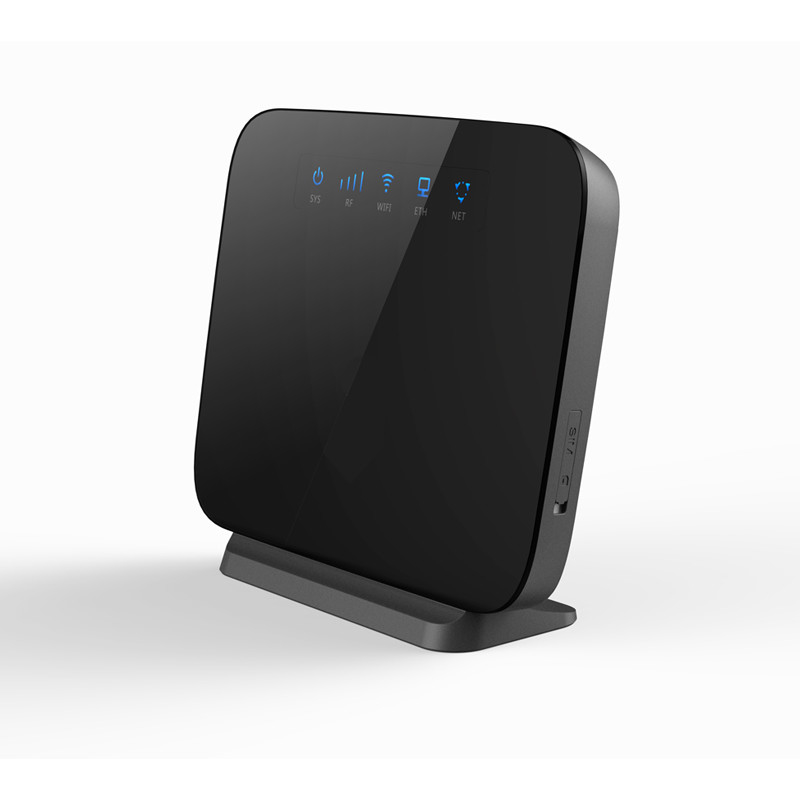

| LED | Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED, |
| USB | USB 2.0 |
| Antenna | Internal Antenna or external |
| Buttons | POWER,Reset, WPS |
| Slic | SI32185 |

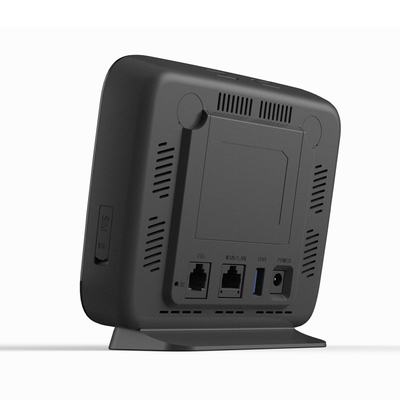

| Ethernet | 1WAN/LAN, 10BaseT/100Base automatic adaptive port |
| RJ11 | RJ11x1 |
| Reset | Pinhole |
| ESD | ESD Protection circuit；Contact±8KV,Air±10KV |
| Battery | Optional |
| SW Update | TR069 &FOTA Update |
| WIFI Mode | AP mode only, AP+STA is Optional |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; |
| SMS & Phone Book | Support |
| USSD | Support |
| USB Function | Default no USB port, can be customized |
| Voice | VoLTE |
| IPv4 | Support IPv4 |
| IPv6 | Support IPv6 |
| IPv4v6 | Support IPv4v6 |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list |
| Data Statistics | Support |
| SIM Lock | Support |
| WAN Fallback to ETH | Automatically |
| WeUI | Support |
| Language | English by default, can be customized. |
| HTTP | Support |
| Depends on customization, cost related | |
| Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C |
| Humidity | 5%~ 95% |
